Compliant mechanism: a privacy screen for offices and home use
2020 semester project

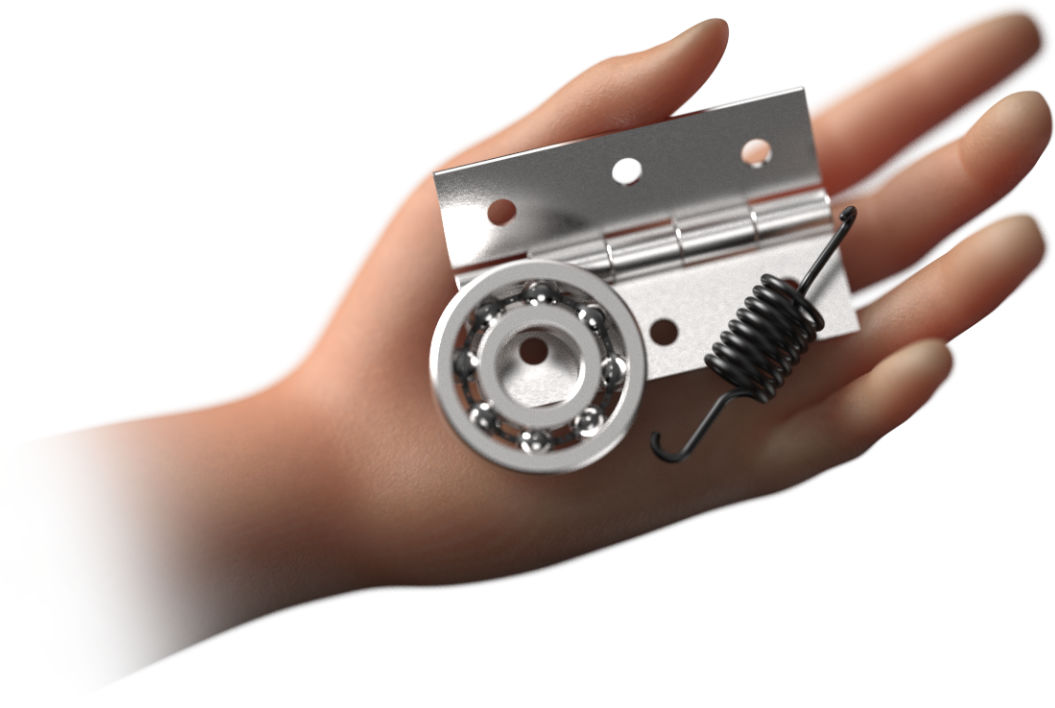

hinges, bearings and springs: is there a way around?
compliant mechanisms have less part counts and are simpler and cheaper to manufacture

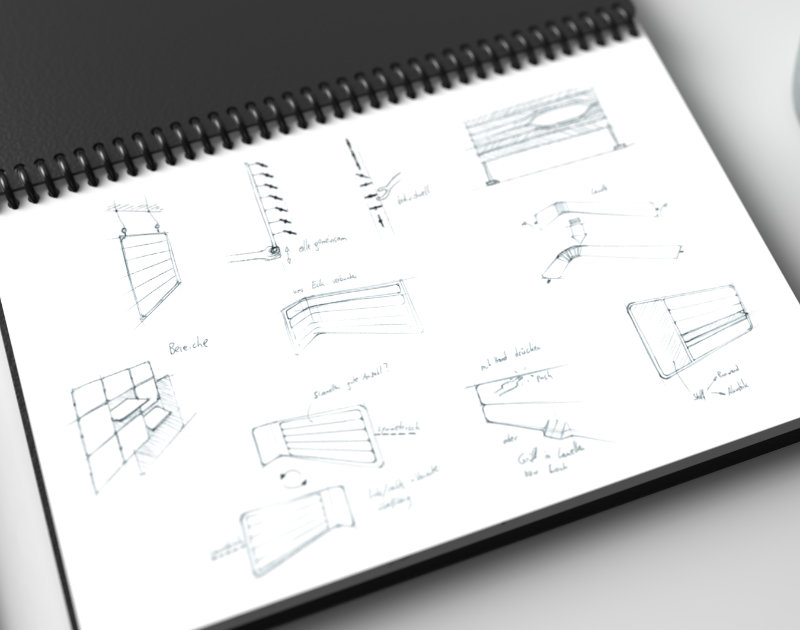

designing a privacy screen with slats implementing a compliant mechanism
millions of cycles no matter the bending angle
injection molded polypropylen
millions of cycles when not overly bended
milled polypropylen

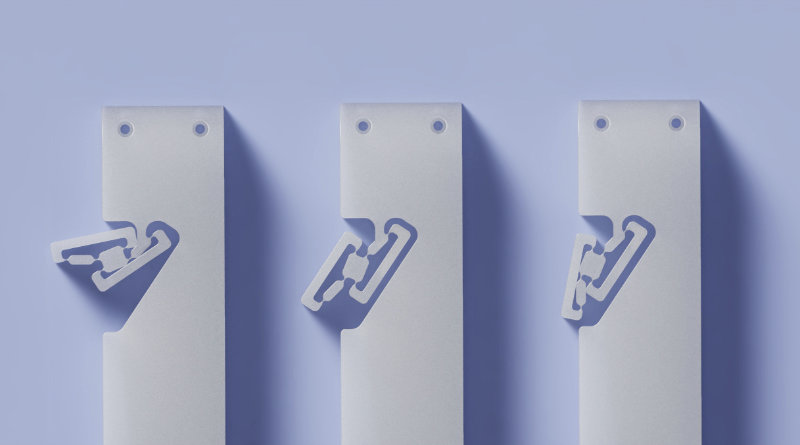

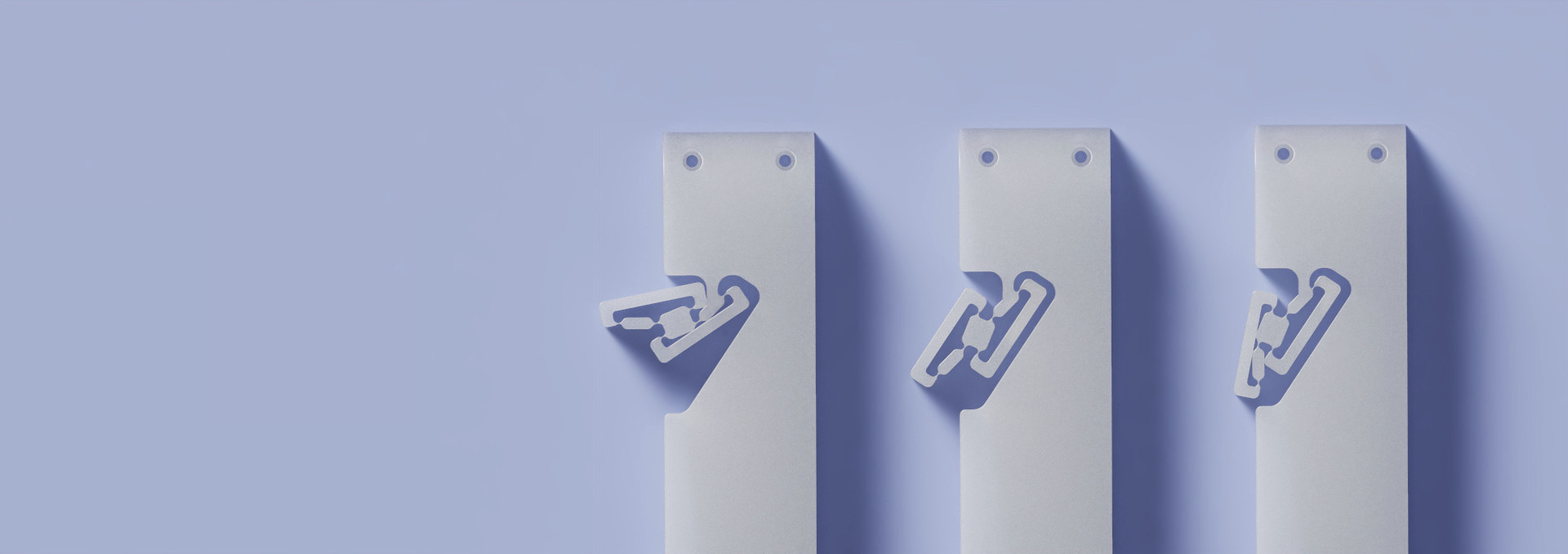

the mechanism is made out of PP and lasts over millions of cycles
the mechanism is made out of PP and lasts over millions of cycles

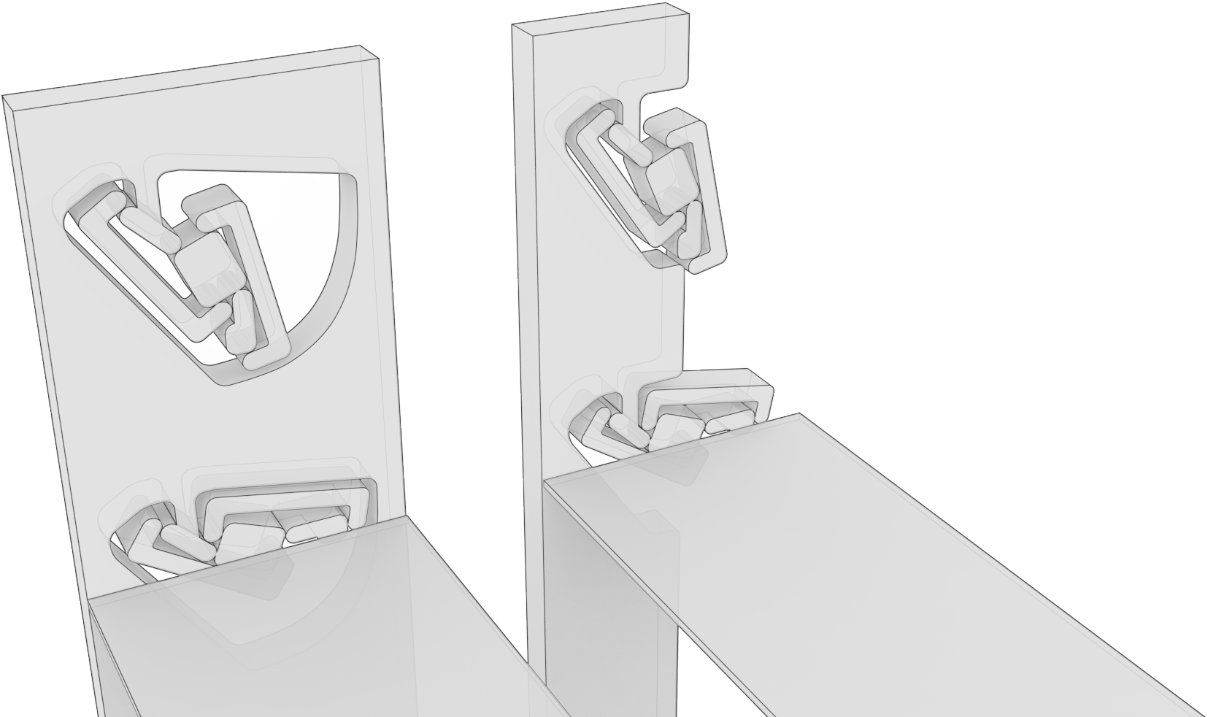

2 variants to consider

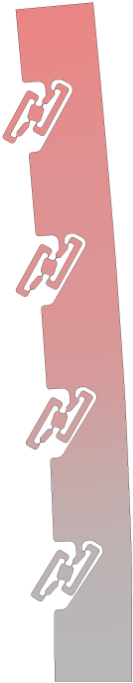

ergonomic studies and FEM analysis to determine the dimensions
ergonomic studies and FEM analysis to determine the dimensions

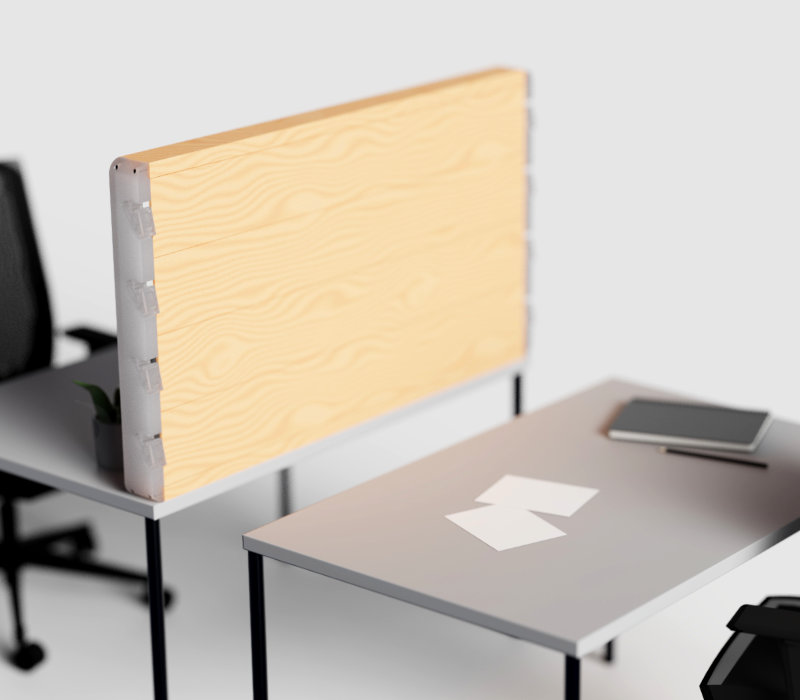

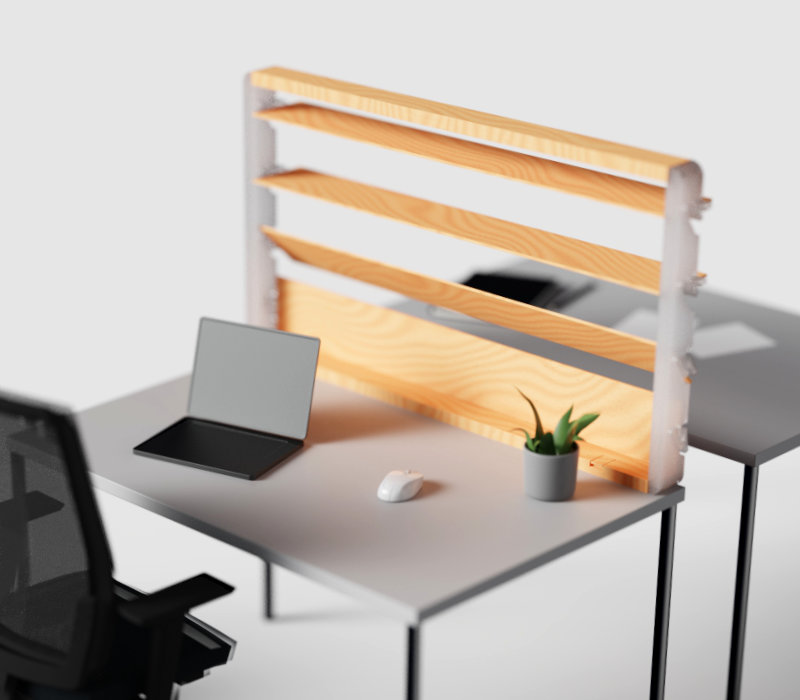

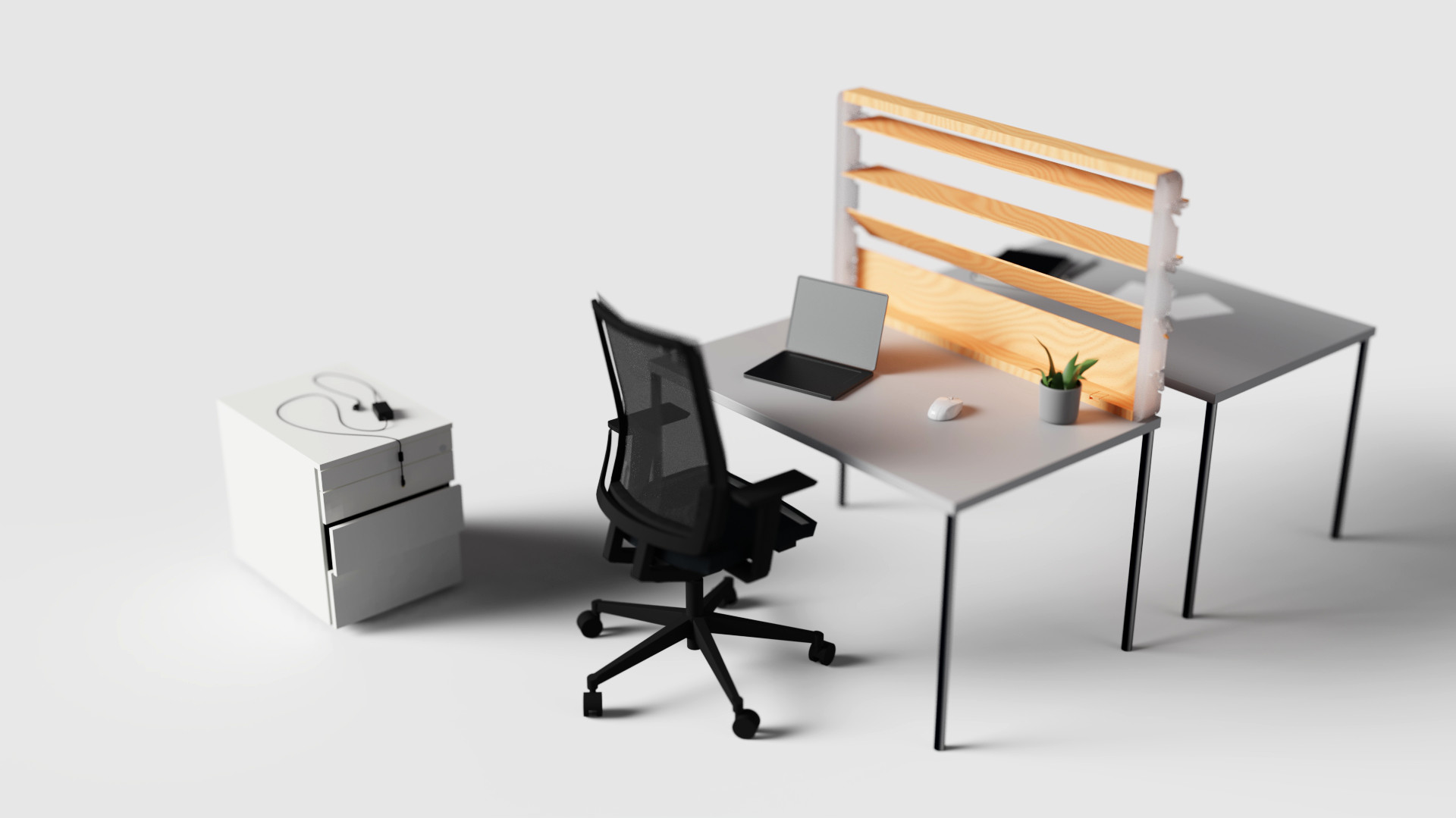

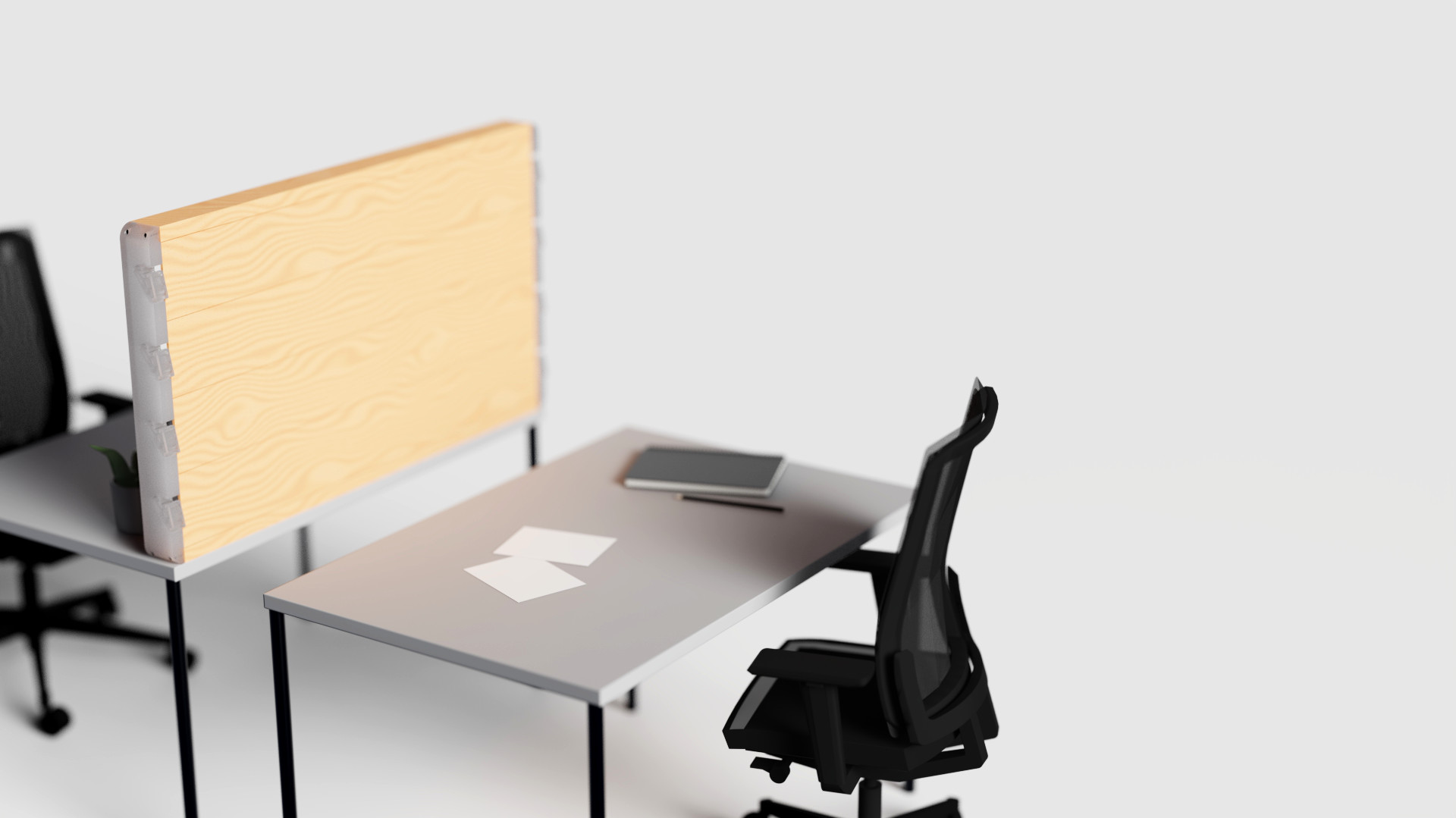

a privacy screen with adjustable slats for offices and homes

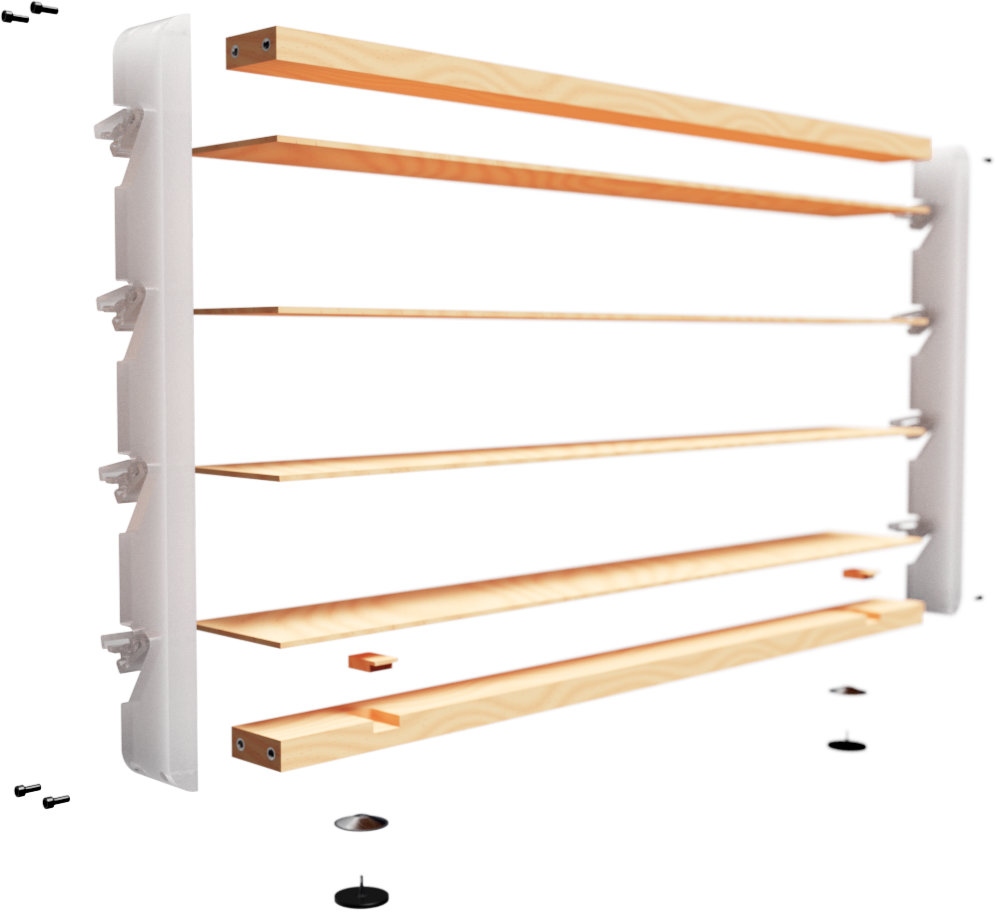

1 part instead of 20
easy attachment to your desk with strong suction cups

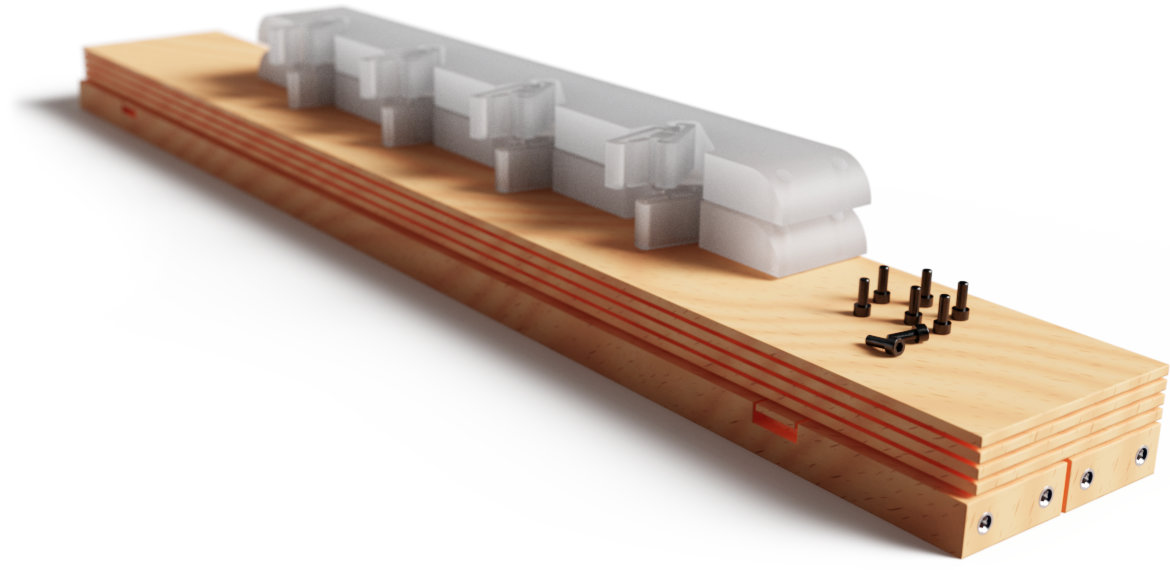

simple assembly and small packaging
